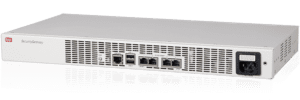

RAD: SecurityGateway
Optimized Solution for Secure Aggregation of Industrial IoT and VPN Traffic
SecurityGateway provides a small form‑factor, yet powerful and cost‑effective solution for aggregating traffic from multiple SecFlow devices in remote IIoT sites. It is ideal for distributed automation in secondary substations, smart meter concentration, water resources management, and smart retail.
VPN Aggregator, Router and Firewall
SecurityGateway is a significant building block of RAD’s Industrial IoT solution, serving as a state-of-the-art VPN aggregation appliance.
In the fast-growing market of IIoT and the need for secured communication, SecurityGateway provides a small form-factor yet powerful and cost-effective solution for aggregating multiple remote sites.
SecurityGateway interoperates only with RAD’s SecFlow product line.
SecurityGateway aggregates multiple VPNs from remote SecFlow devices and addresses Industrial IoT applications, for example:
- Distributed automation in secondary substations
- Smart meter concentration
- Water resources management
- Smart retail.
SecurityGateway is usually located behind the organisational firewall. It may also serve as a WAN gateway, depending on the customer’s needs.
Key Take Aways
VPN and routing capabilities
support reduces the number of network elements and simplifies operations
by the RADview system
form factor
Industrial IoT Backhaul Demo
Quick Specs
- IEEE 802.3
- 802.3u
- 802.1D
- 802.1Q
- 802.1p
- Number of Ports: 4 copper ports
- Data Rate: 10/100/1000 Mbps, Auto-negotiation
- Connector: RJ-45, shielded
- Frame Size: 1522 bytes
- State synchronisation
- Configuration synchronisation
- Common Address Redundancy Protocol
Stateful Firewall
- Configurable to IPv4/IPv6, L3 and L4
- Up-to 500 rules
IPsec (IPv4/IPv6) VPN:
- Authentication:
User-configurable, IKEv1, IKEv2, Certificates, PSK - Encryption:
AES-CBC, AES-GCM128/192/256, Blow-Fish, 3DES, CAST128 - Hash algorithms:
MD-5, SHA-1, SHA-256/384/512, AES-XCBC
OpenVPN
L2TP
- Password-protected access, authorisation levels
- WEB GUI (full configuration and monitoring)
- Local terminal via front panel control port (limited configuration menus)
- SSH (basic configuration menus)
- RADview
- Syslog
- IPv4/IPv6 protocols
- Dual stack IPv4/IPv6
- Static and Dynamic routing
- DHCP client, server and relay
- Protocols: OSPFv2 and OSPFv3
- Firewall based routing policy
- NAT: static, NAPT and Port forwarding
