Line Isolation
Unit 12C
High voltage isolation for analogue lines in a compact sealed unit

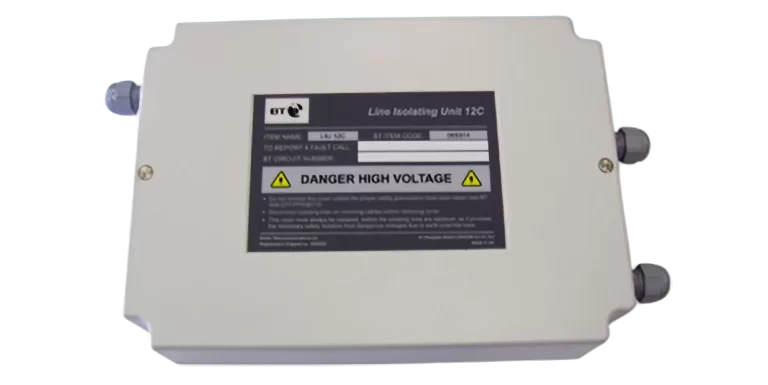

The Line Isolating Unit 12C provides high voltage isolation on analogue telephone lines with broadband delivered to “Hot” sites such as high voltage electricity sub-stations that are subject to a rise of earth potential.
The LIU12C has an integral VDSL splitter which allows direct connection to the LIU3C for PSTN services. The isolator may also be used on ADSL, ADSL 2+, SDSL, SHDSL, SHDSL. bis, VDSL & VDSL2 service lines. Services are selected via internal links.
Key Take Aways
Multi-use
Quality
Hot Sites
Cost Effective
Quick Specs
- ISOLATION: 20kV AC
- CHARACTERISTICS TO LINE (broadband):
- Nominal impedance 135 ohms
- CHARACTERISTICS TO EQUIPMENT
- Nominal impedance 135ohms
- Insertion loss +/-0.25dB
- DSL Services:
- ITU-T G.992.2 (ADSL.G Lite)
- ITU-T G.992.3 (ADSL2 G DMT)
- ITU-T G.992.5 (ADSL2+ DMT)
- ITU-T G.991.2 (SHDSL)
- ITU-T G.993.2 (VDSL2)
- PSTN:
- Low pass VDSL POTs splitter
- BT SIN346
- Ports:
- Line In
- PSTN out
- Broadband out
- INSERTION LOSS
- 200-3.5Khz < 3.5dB
- Complex impedance
- TERMINATION:
- IDC termination
- Test access on Line IDC
- SIZE:
- 250 x 180 x 60mm
- WEIGHT:
- 1.5 kg
- MEETS THE REQUIREMENTS OF:
- Low Voltage Directive 73/336/EEC: safety to BS EN 60950: 1998
- BT Spec. D2966C
