Line Isolator
IUO1244
4-wire speech band data circuit protection
The isolation unit IU01244 provides a barrier between equipment and transmission lines. Each unit interfaces one metallic 4-wire speech band data circuit of 600 ohms impedance.

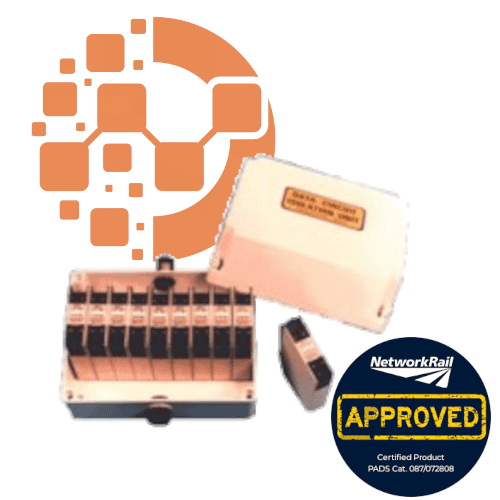

The unit protects equipment from static and traction currents induced into transmission lines up to 10KV. Up to nine units may easily be clipped onto the DIN rail of the wall case type MOD362. The wall case is made of high-impact ABS and sealed to IP55, with cable glands on top and bottom.
National Rail approved product: PADS Cat. 087/072808
Key Take Aways
Quick Specs
- MATCHING IMPEDANCE: 600 Ohm
- FREQUENCY RANGE: 200-4000 Hz
- INSERTION LOSS:
- RETURN LOSS @600R:>23 dB
- SIGNAL AMPLITUDE RANGE:-60 to +20 dB
- CROSSTALK:>-80 dB
- PROOF VOLTAGE @ 50Hz: 10000 VRMS
- INSULATION @ 500VDC: >100 MOhms
