Actelis: ML684DFT/P Industrial Ethernet Switch/Extender

Industrial Ethernet Switch and Extender

The ML684DT/P Industrial Ethernet Switch and Extender from Actelis is a small form factor Add-Drop unit enabling the delivery of symmetrical high-speed Ethernet services over existing copper and fiber infrastructure. Up to 60 Mbps of symmetrical Ethernet traffic over copper and 1 Gbps over fiber. The ML684DT/P offers an integrated serial server functionality supporting existing legacy devices. The ML684DTP provides also PoE+ interfaces feeding two remote devices such as advanced cameras for security and surveillance applications.

Integrated serial server functionality supports existing legacy devices

Designed for Industrial, utility and traffic applications, The ML684DT/P takes in two fiber ports and/or four copper pairs and allows them to be split into two directions, east and west, thereby allowing multiple nodes to be connected over copper or fiber in a linear chain, RSTP/STP mesh or ERPSv2 ring configuration. Each node has full switching capabilities and can drop and add Ethernet traffic at each location while transferring the rest of the traffic through.
The ML684DT/P offers extremely small factor and DIN rail mounting for flexible deployment within utilities, traffic and industrial cabinets. With its superior performance, extensive functionality, high robustness and reliability, the ML684DT/P Ethernet switch offers rapid service delivery and allows for complete utilization of the existing network infrastructure.
ML684D
ML684D

Key Take Aways

High Reliability

Environmentally hardened, redundant power supplies, extended temperature.

Secure

comprehensive mechanisms that include high level authentication and advanced encryption capabilities

Certified

Industry-standard Metro Ethernet Forum (MEF) certification.

Highlights

  • Support for two High-Speed Copper Links
  • Small form factor, no fan, and DIN railing
  • Environmentally hardened
  • Enhanced Security – Low vulnerability to hacking
  • Drop and Continue, RSTP/STP mesh or ERPSv2 ring
  • Serial to Ethernet/IP conversion – RS232/ V.24/ RS422/ RS485
  • Up to 60W per PoE port, 2 ports per device (ML684DTP only)
  • Rapid Service Deployment
  • Superior Rate, Reach & Reliability
  • Low Delay and Jitter for Voice and Video Transmission
  • Comprehensive OAM
  • FCC, UL, CE, NEMA 4

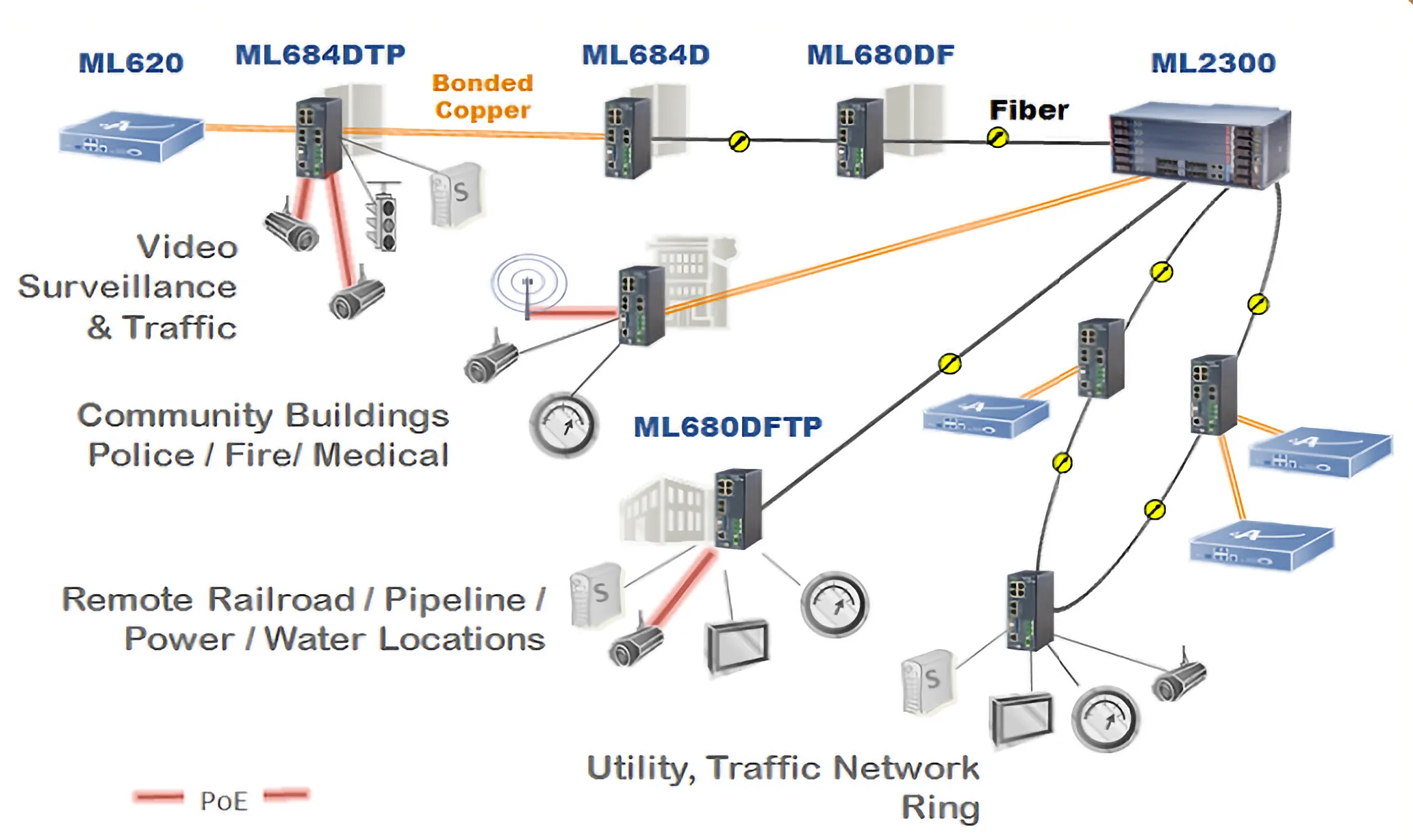

Application example

ML684DFTP Application

Quick Specs

  • Ultra-compact Industrial Ethernet Extender
  • CE 1.0 – MEF 9, 14 Certification
  • 2x 100/1000Base-FX SFP MSA compliant
  • 6 x 10/100Base-T Ethernet interfaces
  • Fits into space-constrained cabinets, DIN rails
  • Passive PoE modes up to 120w (ML684DTP only)
  • Environmentally hardened, -400 to +74 deg C
  • Very low power, external AC or integrated DC options
  • Actelis’ patented EFMplus technology for industry-leading performance
  • MEF-compliant services with advanced SLAs
  • Carrier-class Ethernet OAM including 802.3ah, CFM (802.1ag) and Y.1731 (ITU)
  • Ease of installation and deployment with advanced troubleshooting tools
  • Management suite, including MetaASSIST EMS, easy-to-use GUI, and SNMP for seamless integration with third-party NMS
  • It can be used with any Actelis devices
