Actelis: ML680DF Industrial Ethernet Switch/Extender

Industrial Ethernet Switch and Extender

The ML680DF is part of Actelis’ ML680Dx family of access-switching products designed for industrial, intelligent traffic network, surveillance, pipeline and utility applications. Complementing the ML684Dx, which supports both bonded copper and fibre, the ML680DF is a cost-optimized, fibre-fed only version with east and west fibre connections that allow multiple sensors or cameras at various locations to be connected in a linear chain, RSTP/STP mesh or ERPSv2 ring configurations.

Delivering up to 1Gbps of high-speed Ethernet where you need it.

The ML680DF offers 1 Gbps of full Ethernet switching capabilities, supporting add/drop of traffic to up to six Ethernet client ports at each site while passing the remainder through to other locations. Featuring a minimal factor, fanless design, and DIN rail mounting, the ML680DF is ideal for deployment in almost any traffic, utility, or industrial cabinet, pedestal or vault.

Environmentally hardened with redundant power inputs and featuring a robust, field-proven design, the unit is NEMA 4 extended temperature compliant and K.20/K.21/K.45 rated for protection against over voltage and over current conditions, ensuring high reliability and trouble-free operation.

ML680DF Industrial Ethernet Switch and Extender
ML680DF Industrial Ethernet Switch and Extender

Key Take Aways

High Reliability

Environmentally hardened, redundant power supplies, extended temperature.


comprehensive mechanisms that include high level authentication and advanced encryption capabilities


Industry-standard Metro Ethernet Forum (MEF) certification.


  • 1 Gbps SFP ethernet
  • Small form factor, no fan, and DIN railing
  • Environmentally hardened
  • Drop and Continue, RSTP/STP mesh or ERPSv2 ring
  • Enhanced Security – Low vulnerability to hacking
  • IEEE 802.3ah Ethernet in the First Mile
  • Rapid Service Deployment
  • Superior Rate, Reach & Reliability
  • Low Delay and Jitter for Voice and Video Transmission
  • Comprehensive OAM
  • Worldwide Spectral Compliancy
  • FCC, UL, CE, NEMA 4

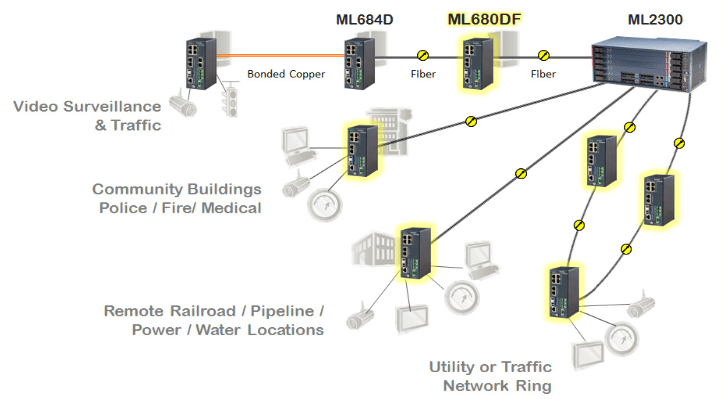

Application example

ML680DF Ethernet Switch and Extension
ML680DF Ethernet Switch and Extension

Quick Specs

  • Ultra-compact Industrial Ethernet Extender
  • CE 1.0 – MEF 9, 14 Certification
  • 2x 100/1000Base-FX SFP MSA compliant
  • 4 x 10/100Base-T Ethernet interfaces
  • Fits into space-constrained cabinets, DIN rails
  • Dual Power Inputs
  • Environmentally hardened, -400 to +74 deg C
  • Very low power, AC/DC options
  • Actelis’ patented EFMplus technology for industry-leading performance
  • MEF-compliant services with advanced SLAs
  • Carrier-class Ethernet OAM including 802.3ah, CFM (802.1ag) and Y.1731 (ITU)
  • Ease of installation and deployment with advanced troubleshooting tools
  • Management suite, including MetaASSIST EMS, easy-to-use GUI, and SNMP for seamless integration with third-party NMS
  • It can be used with any Actelis devices
