Description

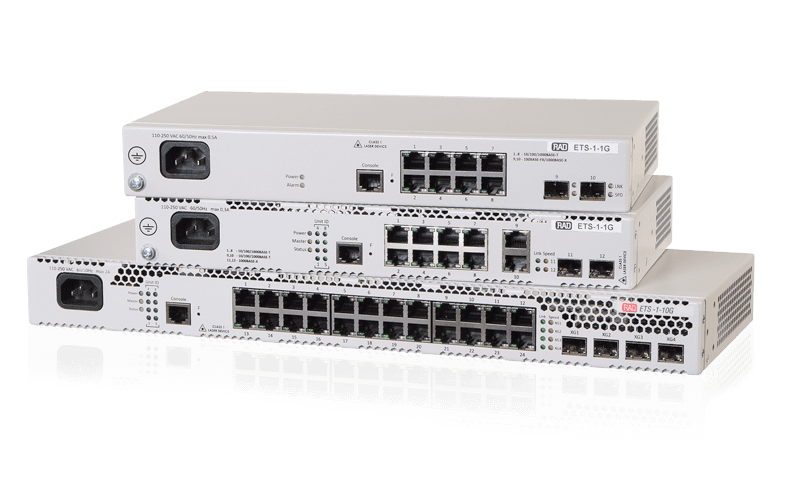

New generation access switches provide end users connectivity to large-scale corporate networks, small and medium business networks, and service provider networks, using 1G/10G interfaces.  The switches support physical stacking, VLANs, multicast groups, and advanced security.

Product Options

Technical Features – ETS-1-10G Devices with Internal Power Supply
Model        ETS-1-10G/4SP/24U

ETS-1-10G/4SP/4CMB/20S/DC

ETS-1-10G/4SP/48S/AC ETS-1-10G/4SP/24P ETS-1-10G/4SP/48P ETS-1-10G/4SP/48U/12V/AC
ETS-1-10G/4SP/4CMB/20S/12V/AC
Interfaces
10/100/1000BASE-T (RJ45)  24 48 48
10/100/1000BASE-T (RJ45) PoE/PoE+  – 24 48
1000BASE-X/100BASE-FX (SFP)  – 20
10/100/1000BASET/1000BASE-X/100BASEFX Combo  – 4
10GBASE-R (SFP+)/1000BASE-X (SFP) 4 4 4 4 4 4
RS232 Console Port
PoE X X X X X
Form Factor 19″, 1U
Dimensions 430 x 158 x 44
(17 x 6.2 x 1.7)
430 x 243 x 44
(17 x 9.6 x 1.7)
440 x 280 x 44
(17 x 11 x 1.7)
440 x 203 x 44
(17 x 7.9 x 1.7)
440 x 490 x 44
(17 x 19 x 1.7)
440 x 280 x 44
(17 x 11 x 1.7)
Download Data sheet here

Additional information

Vendor

The ETS-1 line of next-generation Ethernet Access Switches  provide 1G/10G end user connectivity to large-scale corporate networks, small and medium businesses and service providers.

  • L2+ switches
  • Stacking support
  • Multicast support (IGMP Snooping, MVR)
  • Advanced security (multilayer ACLs, IP Source Guard, and Dynamic ARP Inspection)
  • Download the data sheet
