A Comprehensive Portfolio with Proven Interop

Consumer-grade Access Points and Service Gateways designed to meet service provider and end-user requirements for high-speed access and in-home services.

Residential WiFi Gateways & Extenders

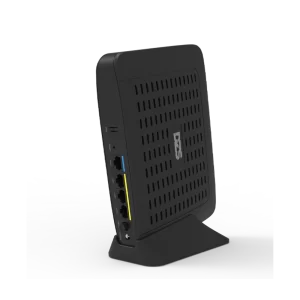

1764WC-A​

Enables the DZS Xperience with CloudCheck compatible Wi-Fi networking for home users.

  • Functions as an Access Point or Client
  • One 2.5 gigabit Ethernet WAN port
  • Three multi-rate 10/100/1000M Ethernet interfaces
  • Dual-band 2.4GHz 2×2 802.11ax, 5GHz 2×2 802.11ax
  • Carrier-grade WiFi 6 interfaces
  • Easy device setup and subscriber self-installation
1664WC​

Enables the DZS Xperience with OpenSync compatible WiFi networking for home users.

  • Functions as an Access Point or Client
  • One gigabit Ethernet WAN port
  • Three multi-rate 10/100/1000M Ethernet LAN ports
  • Dual-band 2.4GHz 2×2 802.11ax, 5GHz 2×2 802.11ax
  • Carrier-grade WiFi 6 interfaces
  • Easy device setup and subscriber self-installation

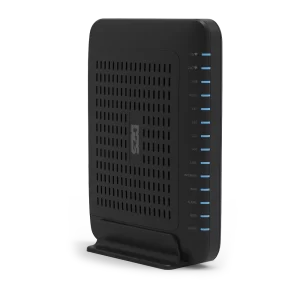

2428TE

Advanced 802.11ax Ethernet service point enables subscribers to enjoy multimedia services over wireless with DZS leading-edge technology.

  • Supports 2.5Gbps/2.5Gbps (Downstream/Upstream) with multi-rate Ethernet WAN interface
  • Four multi-rate 10/100/1000M Ethernet interfaces
  • Two POTS interfaces compliant to SIP and MGPC telephony standards
  • Dual-band 2.4GHz 3×3 802.11ax, 5GHz 4×4 802.11ax Carrier-grade WiFi 6 interfaces
  • Support of DZS CloudCheck WiFi optimisation
  • USB 3.0 with support of 3G and LTE wireless WAN backup

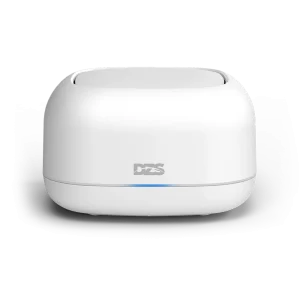

W550CA

First generation 802.11ax Access Point provides high-performance wireless connectivity of multimedia services with DZS leading-edge technologies.

  • Dual-band 2.4GHz 2×2 802.11ax, 5GHz 2×2 802.11ax wireless
  • One gigabit Ethernet WAN port
  • Three multi-rate 10/100/1000M Ethernet LAN ports
  • One USB 2.0 port

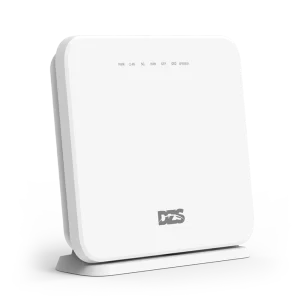

W520CE

The DZS WiFi 5 Access Point provides high-performance connectivity to all users requiring a variety of IoT and mobile environments.

  • Supports Dual-band 2.4GHz/5GHz
  • 2 ports 1GE LAN interface and 1 port 1GE WAN interface
  • Supports IEEE802.1b/ g / n/ ac for WiFi 5

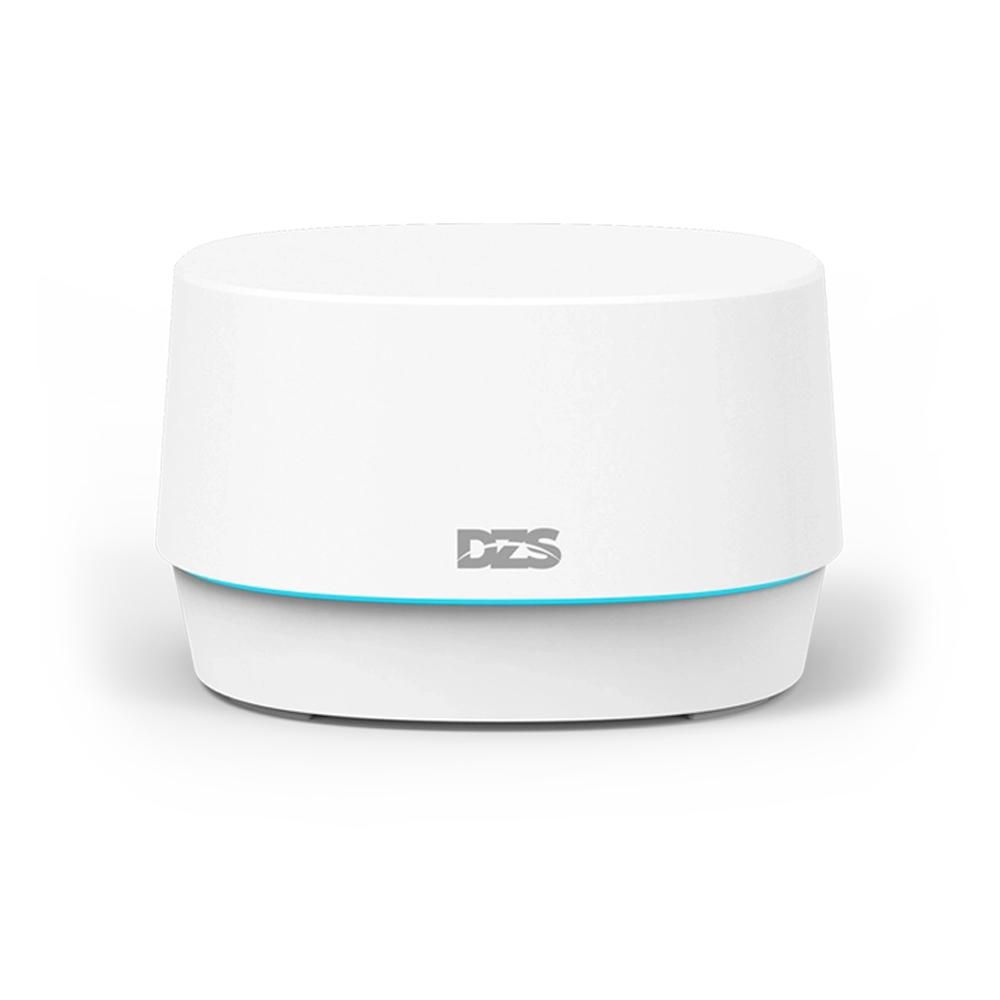

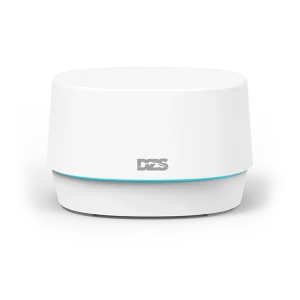

MESH-1200

The MESH-1200 from DZS is the ideal solution for building a EasyMesh compliant Wi-Fi Network for home users.

  • Functions as an Access Point or Client
  • One gigabit multi-rate 10/100/1000M Ethernet WAN port
  • Two gigabit multi-rate 10/100/1000M Ethernet interfaces
  • Dual-band 2.4GHz 2×2 802.11n, 5GHz 2×2 802.11ac
  • Carrier-grade Wi-Fi 5 interface
  • EasyMesh R1
  • Easy device setup and subscriber self-installation

Residential WiFi ONT Gateways

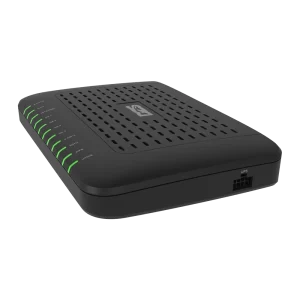

2466GN

Intelligent 802.11ax G-Series ONT enables subscribers to enjoy multimedia services over wireless with DZS leading-edge GPON technology.

  • Supports 2.5Gbps/1.25Gbps (Downstream/Upstream) with integrated GPON WAN interface
  • Four multi-rate 10/100/1000M Ethernet interfaces
  • Two POTS interfaces compliant to SIP and MGPC telephony standards
  • Dual-band 2.4GHz 2×2 802.11ax, 5GHz 2×2 802.11ax Carrier-grade WiFi 6 interfaces
  • 160MHz Bandwidth support at 5GHz + USB 3.0 with support of 3G and LTE wireless WAN backup
  • Support of DZS CloudCheck WiFi optimisation

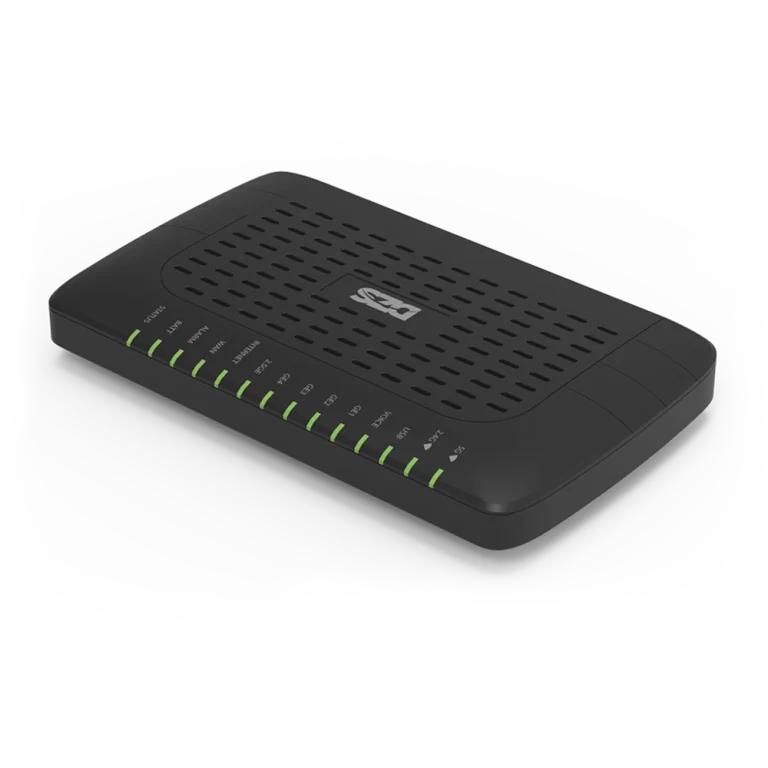

2428GN

The next generation 802.11ax G-Series ONT enables subscribers to enjoy multimedia services over wireless with DZS leading-edge GPON technology.

  • Supports 2.5Gbps/1.25Gbps (Downstream/Upstream) with integrated GPON WAN interface
  • Four multi-rate 10/100/1000M Ethernet interfaces
    Two POTS interfaces compliant to SIP and MGPC telephony standards
  • Dual-band 2.4GHz 3×3 802.11ax, 5GHz 4×4 802.11ax Carrier-grade WiFi 6 interfaces
  • Support of DZS CloudCheck WiFi optimisation
    USB 3.0 with support of 3G and LTE wireless WAN backup

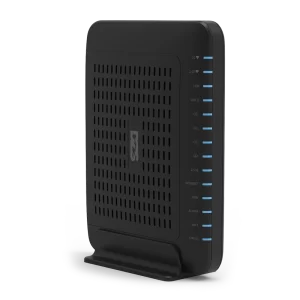

5228XG

The first generation of 802.11ax X-Series ONT enables subscribers to enjoy multimedia services over wireless with DZS leading-edge XGS-PON technology.

  • Supports 10Gbps/10Gbps (Downstream/Upstream) with integrated XGS-PON WAN interface
  • Four multi-rate 10/100/1000M Ethernet interfaces
  • Two POTS interfaces compliant to SIP and MGPC telephony standards
  • Dual-band 2.4GHz 3×3 802.11ax, 5GHz 4×4 802.11ax
  • Carrier-grade WiFi 6 interfaces
  • USB 3.0 with support of 3G and LTE wireless WAN backup

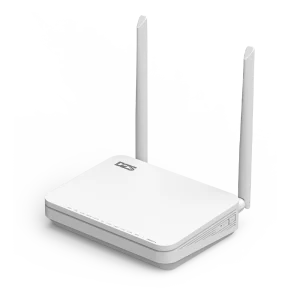

H660GM-A

Supports users to enjoy bandwidth-intensive multimedia services with leading-edge G-PON technology.

  • Supports 1.25Gbps (Up)/2.5Gbps (Down) with GPON interface
  • 4 ports 10M/100M/1G,1 port VoIP, Wireless and 1 USB interface
  • Supports IEEE802.11b/g/n/ac compliant (2.4GHz, 5GHz)

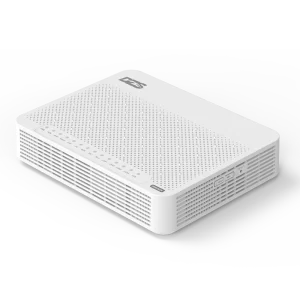

H660GX

The next generation 802.11ax G-Series ONT enables subscribers to enjoy multimedia services over wireless with DZS leading-edge GPON technology.

  • Supports 2.5Gbps/1.25Gbps (Downstream/Upstream) with integrated GPON WAN interface
  • Four multi-rate 10/100/1000M Ethernet interfaces
    Two POTS interfaces compliant to SIP and MGPC telephony standards
  • Dual-band 2.4GHz 3×3 802.11ax, 5GHz 4×4 802.11ax Carrier-grade WiFi 6 interfaces
  • Support of DZS CloudCheck WiFi optimisation
    USB 3.0 with support of 3G and LTE wireless WAN backup

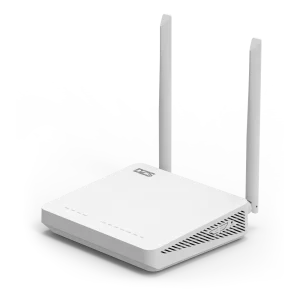

H646GM-V

The DZS H646GM-V supports users to enjoy bandwidth-intensive multimedia services with leading-edge G-PON technology

  • Supports 1.25Gbps (Up)/2.5Gbps (Down) with GPON interface
  • 4 ports 10M/100M/1G, Wireless and 1 USB interface
  • Supports IEEE802.11b/g/n/ac compliant (2.4GHz, 5GHz)

Residential ONTs - GPON

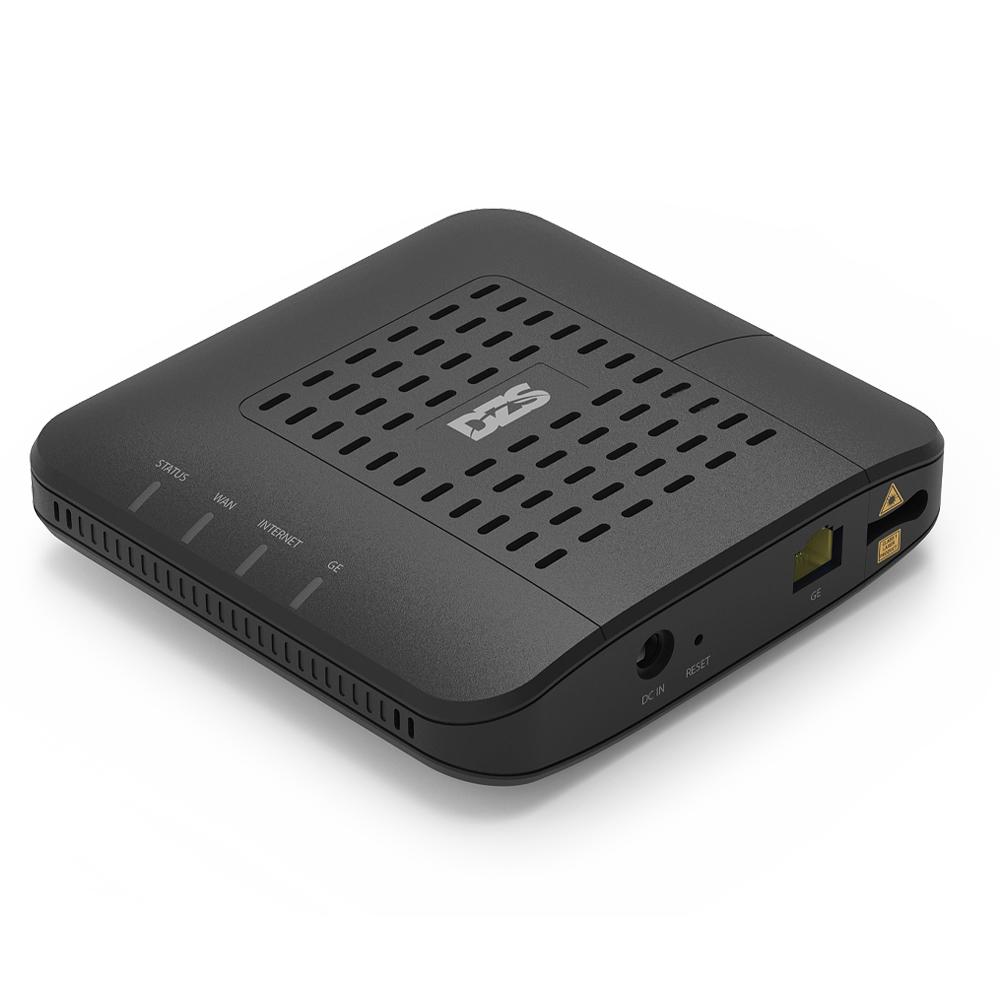

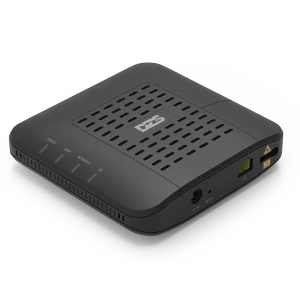

2401GN

The next generation G-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with leading-edge GPON technology.

  • Supports 2.5Gbps/1.25Gbps (Downstream/Upstream) with integrated GPON WAN interface
  • One multi-rate 10/100/1000M Ethernet interface

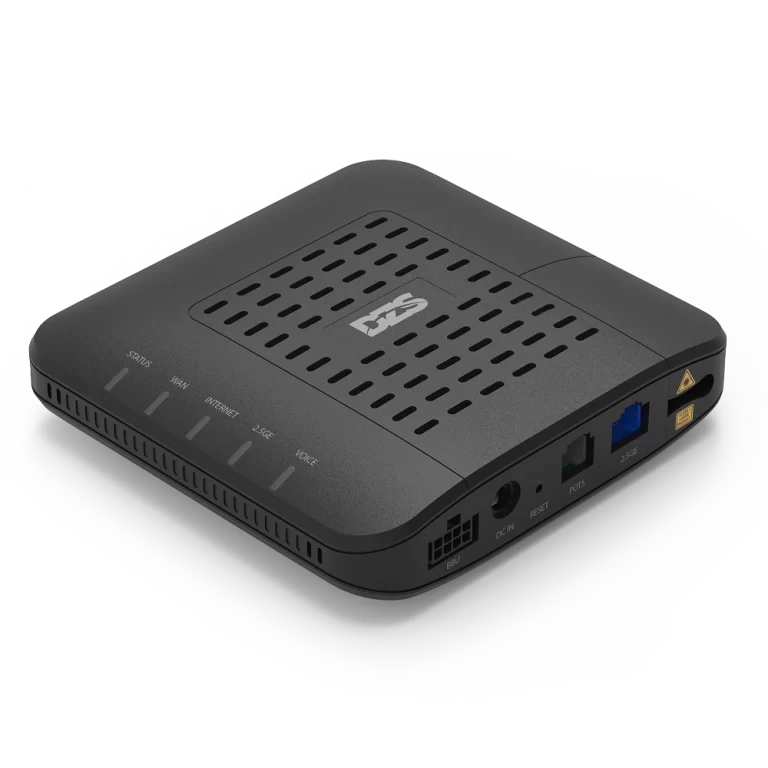

2411GN

The next generation G-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with leading-edge GPON technology.

  • Supports 2.5Gbps/1.25Gbps (Downstream/Upstream) with integrated GPON WAN interface
  • High capacity multi-rate 1G/2.5G Ethernet interface
  • One POTS interfaces compliant to SIP and MGPC telephony standards
2424GN

The next generation G-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with leading-edge GPON technology.

  • Supports 2.5Gbps/ 1.25Gbps (Downstream/ Upstream) with integrated GPON WAN interface
  • Four 10/ 100/ 1000M Ethernet interfaces
  • Two POTS interfaces compliant to SIP and MGCP telephony standards

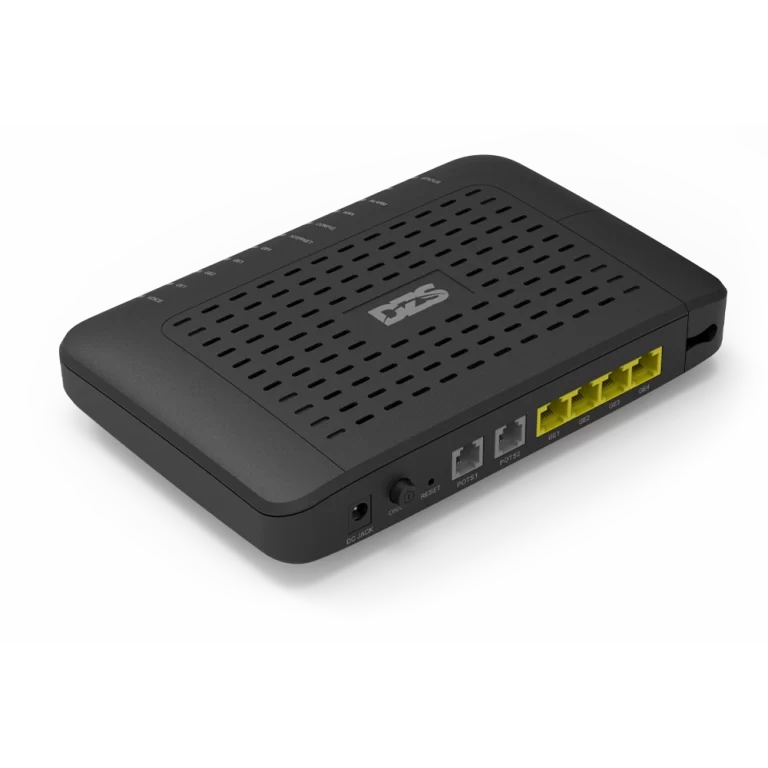

2434GN

The next generation G-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with DZS leading-edge GPON technology.

  • Supports 2.5Gbps/ 1.25Gbps (Downstream/ Upstream) with integrated GPON WAN interface
  • Four multi-rate 10/ 100/ 1000M Ethernet interfaces
  • Two POTS interfaces compliant to SIP and MGPC telephony standards
  • 8-pin Battery Backup interface with telemetry

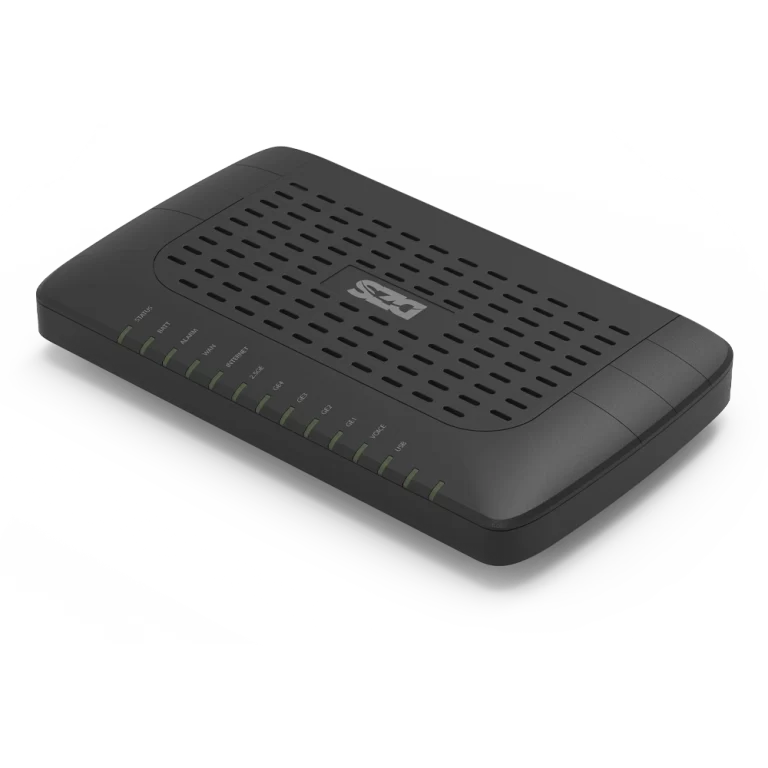

2424A1

Assured services with G-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with DZS leading-edge GPON and AE technology.

  • Supports 2.5Gbps/ 1.25Gbps (Downstream/ Upstream) with integrated GPON WAN interface
  • Supports 1Gbps/ 1Gbps (Downstream/ Upstream) with integrated Active Ethernet WAN interface
  • Four multi-rate 10/ 100/ 1000M Ethernet interfaces
  • Two POTS interfaces compliant to SIP and MGPC telephony standards
  • USB 2.0 with support of 3G and LTE wireless WAN backup

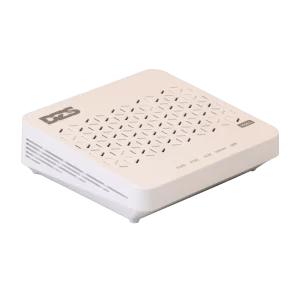

H665

Enables subscribers to enjoy multimedia services with DZS leading-edge GPON technology.

  • Supports 2.5Gbps/ 1.25Gbps (Downstream/ Upstream) with integrated GPON WAN interface
  • One multi-rate 10/ 100/ 1000M Ethernet interface

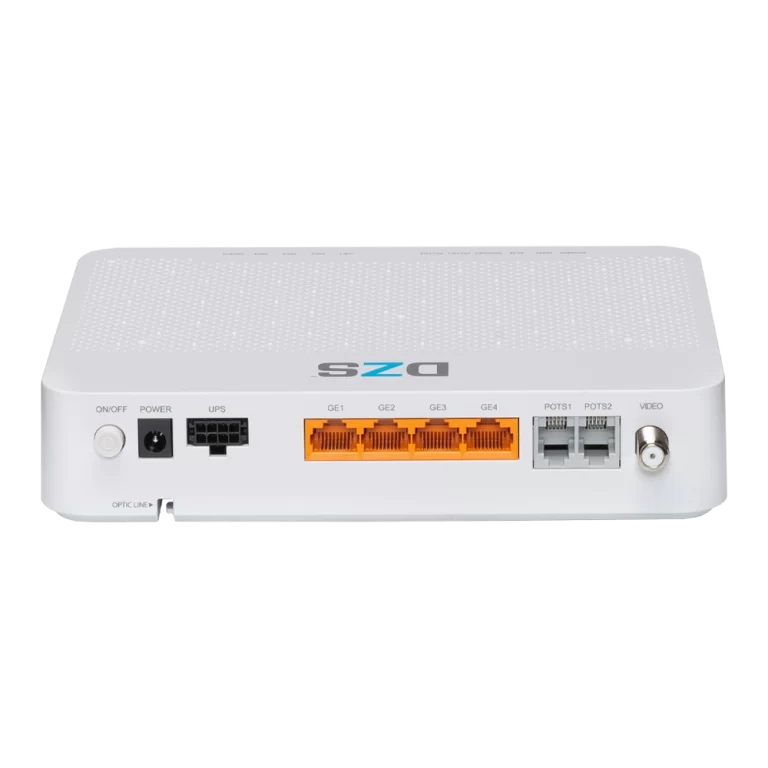

2425A1

G-Series ONT with RF video enables subscribers to enjoy bandwidth-intensive multimedia services with DZS leading-edge GPON technology.

  • Supports 2.5Gbps/ 1.25Gbps (Downstream/ Upstream) with integrated GPON WAN interface
  • Four multi-rate 10/ 100/ 1000M Ethernet interfaces
  • Two POTS interfaces compliant to SIP and MGPC telephony standards
  • One RF F-connector interface with RF passband of 47 – 1,000MHz

Residential ONTs - XGSPON

5211XG

The first generation of 10 Gigabit X-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with leading-edge XGS-PON technology.

  • Supports 10Gbps/ 10Gbps (Downstream/ Upstream) with integrated XGS-PON WAN interface
  • High capacity multi-rate 1G/ 2.5G Ethernet interface
  • One POTS interfaces compliant to SIP and MGPC telephony standards

The first generation of 10 Gigabit X-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with leading-edge XGS-PON technology.

  • Supports 10Gbps/ 10Gbps (Downstream/ Upstream) with integrated XGS-PON WAN interface
  • High capacity multi-rate 1G/ 2.5G/ 5G/ 10G Ethernet interface
  • Two multi-rate 10/ 100/ 1000M Ethernet interfaces
  • Two POTS interfaces compliant to SIP and MGPC telephony standards

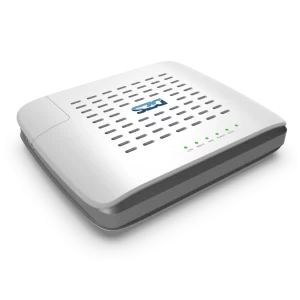

5225A

10 GigE ONT optimised for residential and small-business applications using DZS leading-edge xPON 10G technology.

  • Supports 10Gbps/ 10Gbps (Downstream/ Upstream) with pluggable SFP+ WAN interface
  • One high capacity multi-rate 100M/ 1G/ 2.5G/ 5G/ 10G Ethernet interfaces
  • Four multi-rate 10/ 100/ 1000M Ethernet interfaces
  • Two POTS interfaces compliant to SIP and MGPC telephony standards
  • Enterprise LAN features (802.1x, LLDP)

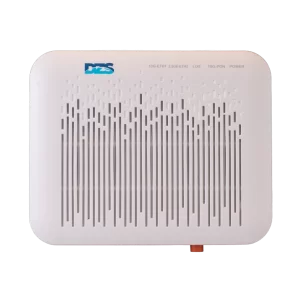

5302

Cost optimised 10 Gigabit X-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with leading-edge XGS-PON technology.

  • Supports 10Gbps/ 10Gbps (Downstream/ Upstream) with integrated XGS-PON WAN interface
  • High capacity multi-rate 1G/ 2.5G/ 5G/ 10G Ethernet interface
  • One multi-rate 10/ 100/ 1000M Ethernet interfaces

Business ONTs - GPON

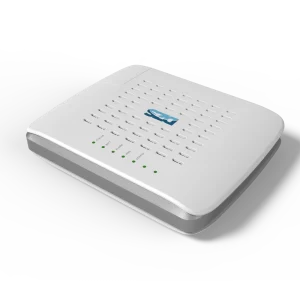

2804GN

Next generation plenum-rated FiberLAN PoE ONT optimised for desktop and wall-mount installations using DZS leading-edge GPON technology.

  • Supports 2.5Gbps/ 1.25Gbps (Downstream/ Upstream) with integrated GPON WAN interface
  • Four gigabit multi-rate 10/ 100/ 1000M Ethernet interfaces
  • 802.3af, at, and bt PoE++ compliant
    Up to 240W of PoE power per ONT
    Enterprise LAN features (802.1x, LLDP)
  • UL-2043 plenum rating
  • Fibre management tray option

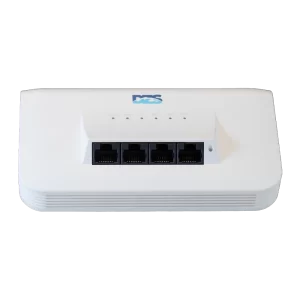

Low-profile FiberLAN PoE ONT optimised for wall-plate mount installations using DZS leading-edge GPON technology.

  • Supports 25Gbps/ 1.25Gbps (Downstream/ Upstream) with integrated GPON WAN interface
  • Four gigabit multi-rate 10/ 100/ 1000M Ethernet interfaces
  • 802.3af, at, and bt PoE++ compliant
  • Up to 120W of PoE power per system
  • Enterprise LAN features (802.1x, LLDP)
  • Wall-plate style compatible with single-gang boxes and Modul45 systems
  • No exposed fibre or power

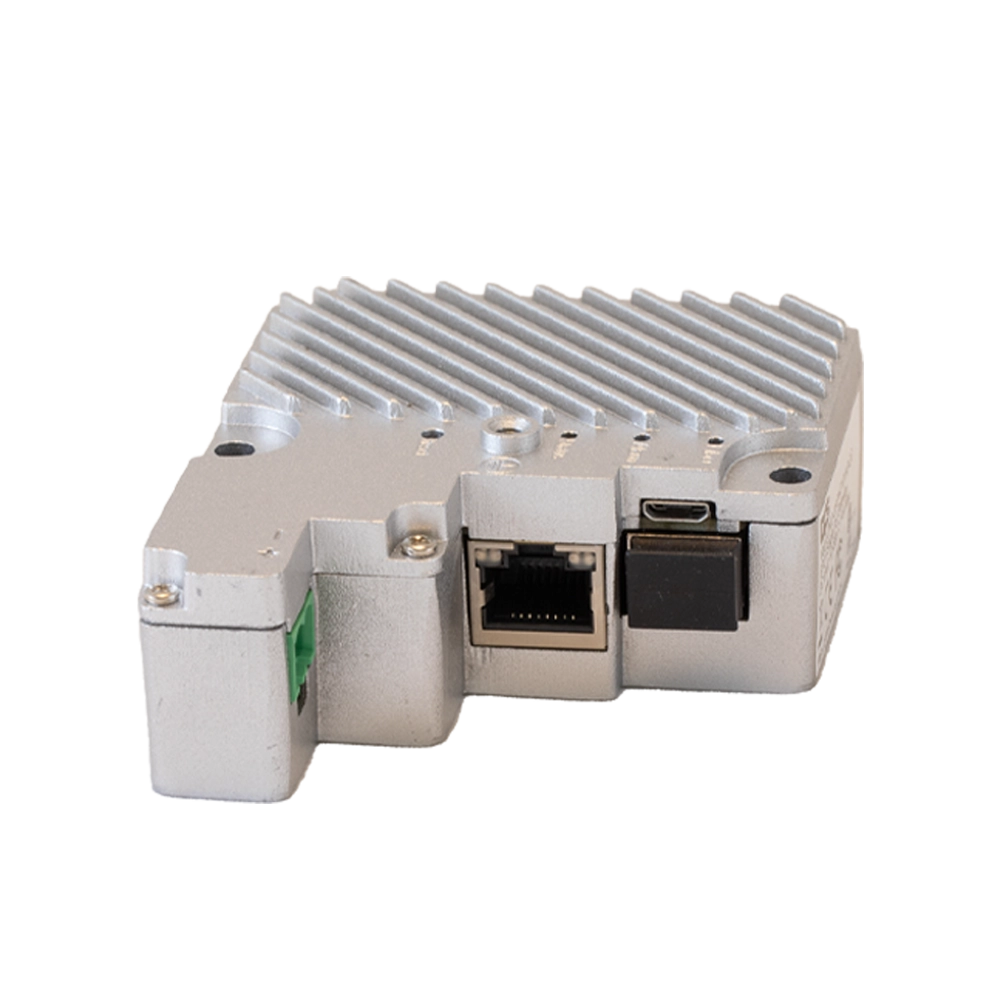

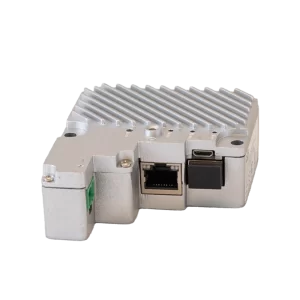

210HP

Plenum-rated FiberLAN PoE ONT optimised for electrical outlet boxes using DZS leading-edge GPON technology.

  • Supports 2.5Gbps/ 1.25Gbps (Downstream/ Upstream) with integrated GPON WAN interface
  • One gigabit multi-rate 10/ 100/ 1000M Ethernet interface
  • 802.3af, at, and bt PoE++ compliant
  • Up to 60W of PoE power per ONT
  • Enterprise LAN features (802.1x, LLDP)
  • Industrial design with heat-sink can be installed within electrical outlet box

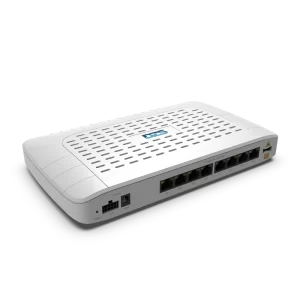

2609GN

Next generation FiberLAN PoE ONT optimised for desktop and wall-mount installations using DZS leading-edge GPON technology.

  • Supports 2.5Gbps/ 1.25Gbps (Downstream/ Upstream) with integrated GPON WAN interface
  • Eight gigabit multi-rate 10/100/1000M Ethernet interfaces
  • 802.3af, at, and bt PoE++ compliant
  • Up to 240W of PoE power per ONT
  • Enterprise LAN features (802.1x, LLDP)
  • Fibre management tray option

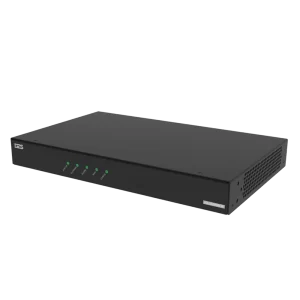

2609GN-R

Next generation FiberLAN MDU ONT optimised for desktop and wall-mount installations using DZS leading-edge GPON technology.

  • Supports 2.5Gbps/ 1.25Gbps (Downstream/ Upstream) with integrated GPON WAN interface
  • Eight gigabit multi-rate 10/100/1000M Ethernet interfaces
  • 802.3af, at, and bt PoE++ compliant
    Up to 240W of PoE power per ONT
  • Enterprise LAN features (802.1x, LLDP)

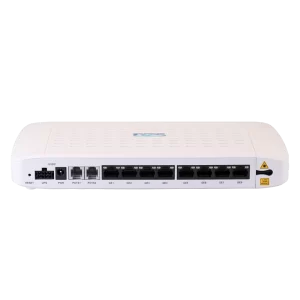

2628GN

Next generation FiberLAN ONT with voice FXS ports optimised for desktop and wall-mount installations using DZS leading-edge GPON technology.

  • Supports 2.5Gbps/ 1.25Gbps (Downstream/ Upstream) with integrated GPON WAN interface
  • Eight gigabit multi-rate 10/100/1000M Ethernet interfaces
  • Two POTS interfaces compliant to SIP and MGPC telephony standards
  • Enterprise LAN features (802.1x, LLDP)
  • Fibre management tray option

Business ONTs - XGSPON

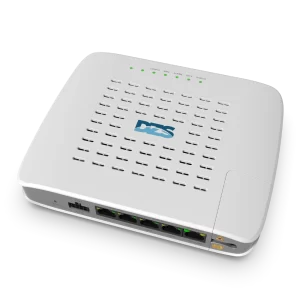

5205P

10 GigE FiberLAN PoE ONT optimised for desktop and wall-mount installations using DZS leading-edge xPON 10G technology.

  • Supports 10Gbps/ 10Gbps (Downstream/ Upstream) with pluggable SFP
  • WAN interface+ One 10 gigabit multi-rate 100M/ 1G/ 2.5G/ 5G/ 10G Ethernet interfaces
  • Four gigabit multi-rate 10/100/1000M Ethernet interfaces
  • 802.3af, at, and bt PoE++ compliant + Up to 120W of PoE power per system
  • Enterprise LAN features (802.1x, LLDP)+ Fibre management tray option

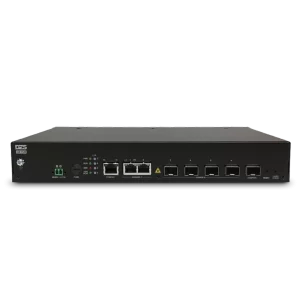

H815M

Delivers XGS-PON or 10GS high-capacity business services and mobile transport over PON and point-to-point applications.

  • Supports 10Gbps/ 10Gbps (Downstream/ Upstream) with pluggable SFP
  • WAN interface + Four 10G SFP Ethernet interfaces
  • Two gigabit multi-rate 10/100/1000M Ethernet interfaces
  • High scalability of full-service solutions
