Optical Edge

Transform the Optical Edge

Unique Hardened Solutions for the Optical Access Edge, Innovative Solutions for 5G and O-RAN Mobile Transport.

DZS Mobile Transport products are purpose-built routers, switches and gateways designed to facilitate the deployment of 5G networks around the world. We primarily target use cases where O-RAN is driving transformational change including packet-based fronthaul, non-traditional cell sites and In-building 5G small cells.

The new Saber Optical Transport solutions transform how service providers think about deploying and managing high bandwidth 100G and 400G optical transport and services, pushing high bandwidth transport closer to their customers out to the very EDGE of their network.

Optical Transport

Hardened Optical Platforms

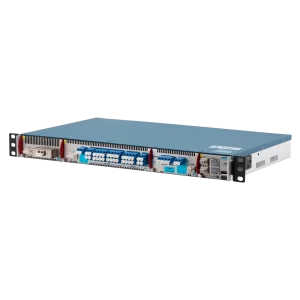

Saber-4400

First-of-its-kind environmentally hardened, modular transport platform delivers up to 400 Gbps per wavelength and the industry’s smallest for factor CDC Flex-Grid ROADM

  • Hardened, extended temperature range (ETR)
  • Full 2-degree CDC-Flex Grid ROADM (can be expanded to 8-degrees), NEBS-3 compliant
  • Hot-swappable one-slot, two-slot, three-slot, four-slot sleds/modules for network L0 to L3 edge applications
  • Hot-swappable management module
  • Multiple units can be stacked and appear as a single network element with a single management IP and redundant management hardware
  • GR-3108 OSP Class 2 compliant
  • Advanced timing options including integrated GPS module for GrandMaster timing
  • Secure software management
  • Trusted protection module (TPM)
  • SNMP and NETCONF/YANG
  • Integrated with DZS Xtreme
  • Graphical Shelf Manager (OSM)

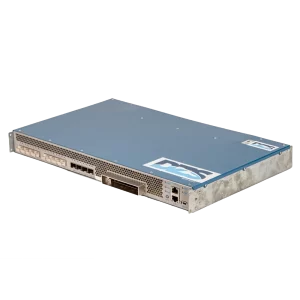

Saber-9301

Provides efficient multi-protocol muxponding of 10G services onto a 100G OTU4 uplink.



  • Compact 1RU platform
  • Fully-integrated cooling and management
  • Extended temperature range
  • 100G OTU4, CFP-SR10, CFP-LR4, CFP-DCO•GFEC, HGFEC, SDFEC
  • 10 SFP+ ports
  • Gray, CWDM, DWDM, Tunable
  • 10 GbE, OTU2(e), 8G/10G FC, OC-192
  • Performance monitoring
  • GR-3108-CORE, Class 2,GR-63-CORE, GR-1089-CORE, CSA/UL

Transponder / Muxponder for Saber Platforms

Flexible family of sleds for SABER-4400 platform

  • Removable, one-slot and two-slot sleds
  • Transponder and multi-client port Muxponder options
  • Hardened, extended temperature range (ETR) options
  • 100G to 400G Coherent DWDM line speeds•10G to 400G client speeds
  • Client and line protection options
  • Client and line encryption options
  • Operate with Path Protection Modules (PPM)
  • Software-programmable pluggable coherent optics
  • CFP2 and QSFP28-DD coherent DWDM line options
  • Advanced client and line performance monitoring and alarming
  • OpenROADM data management models
  • FlexE, Ethernet and OTN Mapping options

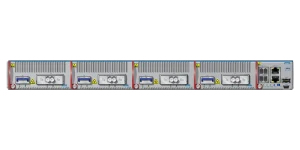

TMX-4400

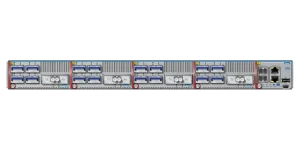

TMX-4401

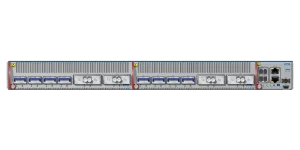

TMX-4402

Passive Mux

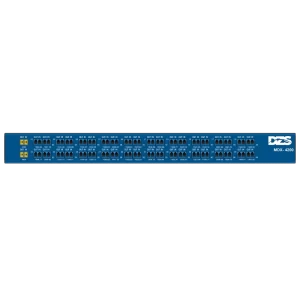

MDX-4200

The MDX shelf series provides up to 80 channels of terminal multiplexing and demultiplexing in a single unit onto a common DWDM line.

  • 40 wavelengths at 100-GHz spacing in a 1RU shelf
  • Common input and output monitor port
  • Fully passive (unpowered)
  • Gaussian and Flat-top versions
  • Install in standard 19-inch and 23-inch racks
  • Integrated fibre management

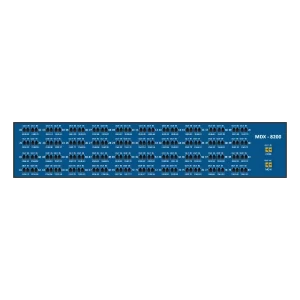

MDX8200

The MDX shelf series provides up to 80 channels of terminal multiplexing and demultiplexing in a single unit onto a common DWDM line.

  • 80 wavelengths at 50-GHz spacing in a 2RU shelf
  • Common input and output monitor port
  • Fully passive (unpowered)
  • Gaussian and Flat-top versions
  • Install in standard 19-inch and 23-inch racks
  • Integrated fibre management

Flexible Modular Optical Networking

DZS offers a variety of platforms to enable the deployment of flexible, cost-effective networking solutions.

These shelves support the DZSO-Series portfolio of service cards with fan- or convection-cooled configurations for installation in managed or unmanaged applications.

Comprehensive service options
The shelves support the entire range of services, giving operators the freedom to configure any type of network. The common elements support configurations ranging from OADMs to muxponders with ROADMs.

Cost-effective pay-as-you-grow
With four shelf sizes and universal slots, an initial network can be configured with low first-in cost. Future in-service
network expansion is as simple as adding and configuring new cards.

Ease of setup and operations
The shelves are designed to make configuration easy, with minimal setup and engineering rules. Management options range from local CLI access to centralised network management.

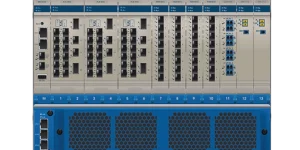

OMS-7190

highest capacity platform, ideally suited for aggregation, complex node sites and core interconnection.

  • Comprehensive service options
  • Cost-effective pay-as-you-grow
  • Ease of setup and operations
OMS-2190

Provides versatility and feature-richness in a compact 2 RU chassis.

  • Comprehensive service options
  • Cost-effective pay-as-you-grow
    Ease of setup and operations

DZSO Series Line Cards - CWDM / DWDM

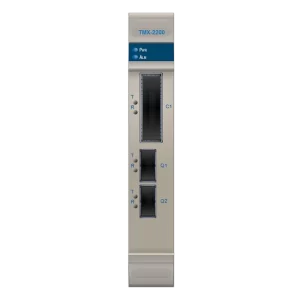

TMX-2200

An ideal DWDM transport solution for 100 GbE or OTU4 services.

  • Singe-slot OMS card
  • Up to 2.6 Tb/s capacity in a single OMS-7190 shelf
  • Physical layer encryption
  • CFP2-DCO
  • 100G DP-QPSK or 200G DP-16QAM•Coherent, fully-tunable
  • SDFEC or HGFEC
    Performance monitoring
  • Two QSFP28•100 GbE and OTU4•SR4 and LR4•RMON and OTU4 performance

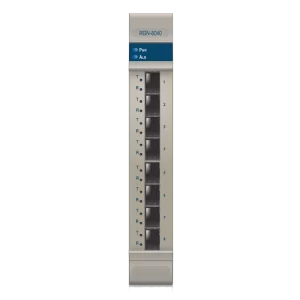

RGN-8010/40

O-Series suite of transponder/regenerator cards provides service demarcation, wavelength translation and signal regeneration for reach extension of client services over dedicated fibre, CWDM or DWDM facilities.

  • Data center/storage, TDM, video, mobile backhaul, wholesale and business services
  • Service termination or transparent any-rate private line
  • Inter- and intra-operator handoff
  • Up to 4 independent transponders or 8 regenerators per single-width card
  • SFP, SFP+, XFP and integrated tunable optics
  • Software configurable multi-protocol independent client services
  • Low-latency connectivity for financial trading or
  • CPRI mobile fronthaul
  • 2R and 3R options

DZSO Series Line Cards - ROADMs

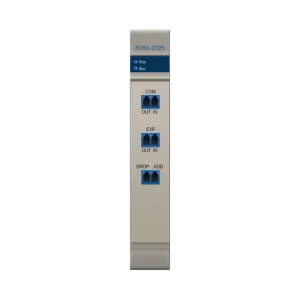

RDM-2105/4105

O-series ROADMs provide an essential capability that reduces total cost of ownership, simplifies operations and delivers rapid time to revenue.

  • Add, drop and pass-through DWDM wavelengths at network sites, and remotely reconfigure circuits at any time without visiting the site
  • Automatically monitor optical power levels on all wavelengths without requiring an optical spectrum analyser
  • Perform automatic, per-channel optical power balancing in real time Scalable ROADM sites
  • Two-degree and four-degree ROADMs are available to allow multi-degree site deployment
  • 40-channel and 80-channel cards enable cost-effective deployment
  • Leverages mature WSS technology for high reliability and low power utilisation

DZSO Series Line Cards - Fibre Amplifiers

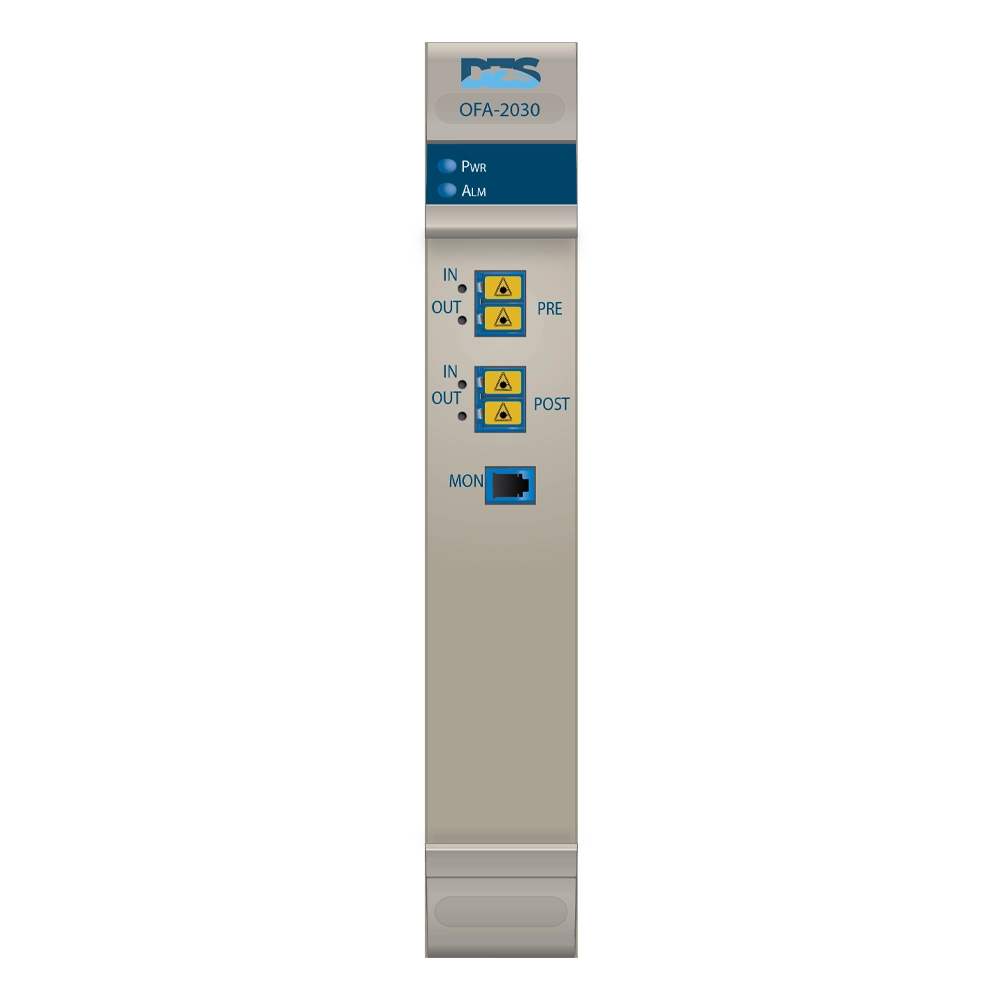

OFA-1715/20/30 & OFA-2015/20/30

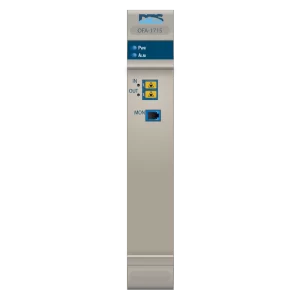

OFA-1715

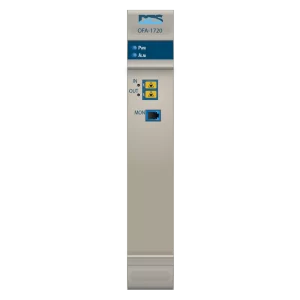

OFA-1720

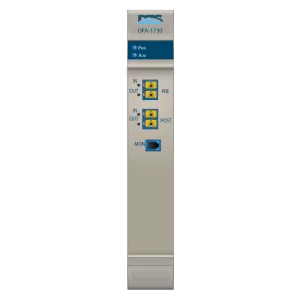

OFA-1730

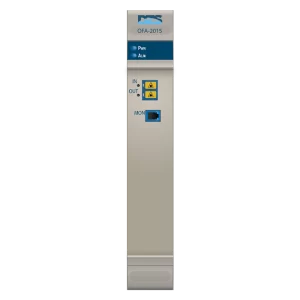

OFA-2015

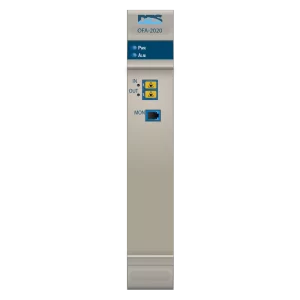

OFA-2020
OFA-2030

Extended temperature low noise cards

  • Support up to 80 DWDM wavelengths in the ITU C-band
  • Fixed and variable gain models
  • Mid-stage access for dispersion compensation
  • Fast transient suppression
  • Extended temperature range operation Applications
  • DWDM reach extension
  • Metro, regional and longhaul networks
  • ROADM and fixed OADM
  • Mobile backhaul
  • Outside plant

Mobile Mid Haul / Back-Haul Aggregation

Carrier Switches

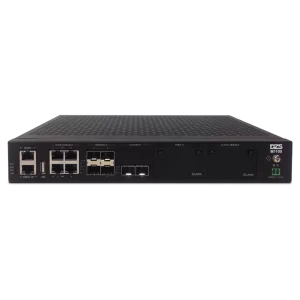

M1100

The M1100 is carrier Ethernet switch designed for mobile backhaul networks with 10 Gigabit capacity and rigid quality-of-service and security needs.

  • Two 10GE Ethernet ports
  • Optional 10GE, XGS-PON or GPON
  • Ethernet OAM 802.1ag and Y.1731
  • SNMPv1/v2/v3 with RMO, Alarms
  • Improved QoS and differentiated traffic service
  • RADIUS, TACACS+ Authentication•
  • TWAMP Reflection function
  • IEEE1588v2TC/BC, Synchronous Ethernet
  • IP65 with fan-less design

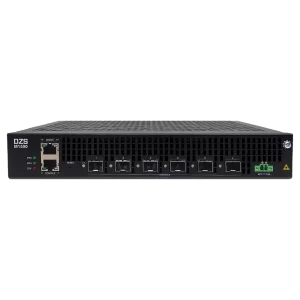

M1500

The M1500 is carrier Ethernet switch designed for mobile backhaul networks with 10 Gigabit capacity and rigid quality-of-service and security needs.

  • Six 10GGE optical Interfaces (SFP/SFP+)
  • Ethernet OAM 802.1ag and Y.1731
  • SNMPv1/v2/v3 with RMO, Alarms
  • Improved QoS and differentiated traffic service
  • RADIUS, TACACS+ Authentication•
  • TWAMP Reflection function
  • IEEE1588v2TC/BC, Synchronous Ethernet
  • IP65 with fan-less design

Low Latency Routers

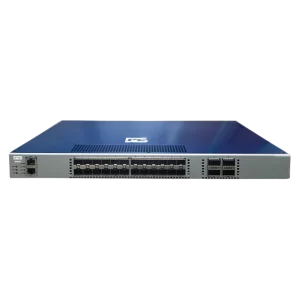

M3000

The M3000 router supports Carrier Ethernet/IP ultra-low latency switching and aggregation for mobile AnyHaul applications.

  • 1 Tb/s switching capacity
  • 24 ports of 1GBase-R (SFP), 10GBase-R (SFP+), or 25GBase-R (SFP28)
  • 4 ports of 40GBase-R (QSFP+) or 100GBase-R (QSFP28)
  • Supports multiple generations of mobile services including 3G/ 4G/ LTE/ 5G
  • IP/ MPLS aggregation
  • Advanced Class C PTP timing services for mobile clocking synchronisation
  • Optimised for small aggregation and remote PoP (point-of-presence) applications.
M3500

The M3500 router supports Carrier Ethernet/IP ultra-low latency switching and aggregation for mobile AnyHaul applications.

  • 3.6 Tb/s switching capacity
  • Fixed 48 ports of 1GBase-R (SFP), 10GBase-R (SFP+), or25GBase-R (SFP28)
  • 6 ports of 40GBase-R (QSFP) or 100GBase-R (QSFP28)
  • Supports multiple generations of mobile services including 3G/ 4G/ LTE/ 5G
  • Ethernet/ IP aggregation
  • Advanced Class C PTP timing services for mobile clocking synchronisation
  • Optimised for aggregation and remote PoP (point-of-presence) applications

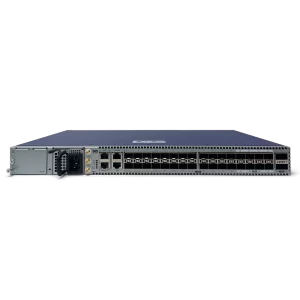

M4000

The M4000 is a flexible multi-purpose router for mobile AnyHaul applications.

  • SRv6/SR-MPLS based Router+ 32 ports of 10/25GE (SFP+/SFP28)
  • 2 ports of 100GBase-R(QSFP28)+ 360Gb/s switching capacity
  • Operates as Timing Grand Master with integrated GNSS receiver
  • Redundant dual power interface
  • Hot swappable fan interface

Mobile Gateways

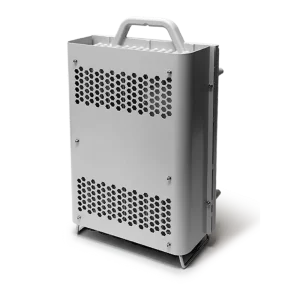

C1216LO

A unique, outside plant Ethernet switch and mobile fronthaul gateway.

  • Outside plant high-capacity Ethernet switch
  • Network Interfaces
    9 ports of 10/25GE (SFP+/SFP28)
    3 ports of 1/10GE (SFP/SFP+)
    2 ports of 25/50GE (SFP28/DSFP28)
    2 ports of 100GBase-R(QSFP28)
  • IP65 rated, no fans
  • Time-sensitive networking features
  • High capacity, very low latency
  • Operates as Timing Grand Master with integrated GNSS Receiver
  • NETCONF/YANG
C1216RO

A unique, outside plant Ethernet switch and mobile fronthaul gateway.

  • Outside plant high-capacity Ethernet switch
  • CPRI fronthaul gateway
  • Network Interfaces
    9 ports of 10/25GE (SFP+/SFP28)
    2 ports of 25/50GE (SFP28/DSFP28)
    2 ports of 100GBase-R(QSFP28)
    3 ports of CPRI (SFP+)
  • IP65 rated, no fans
  • Time-sensitive networking features
  • High capacity, very low latency
  • Operates as Timing Grand Master with integrated GNSS Receiver
  • NETCONF/YANG
