OneAccess – Small Branch Office Routers

Built for Service Providers needs

By leveraging OneOS6, these routers can be used for Service Provider standard services and corporate projects, including IP VPN and SD-WAN. They are easy to combine with uCPEs and VNFs, and Service Providers can easily integrate them into their management systems by supporting legacy and state-of-the-art protocols.

Deliver Agile High Speed Services

As part of a complete product family enabling up to 10Gbps business data services, the OneAccess Small Office/Branch Routers are designed to deliver VDSL, Fibre and 5G data services for the SME market with optional LTE for service continuity. OneAccess is a range of powerful routers based on a compact form factor. Based on the latest VDSL chipset technology, OneAccess assures market-leading interoperability and superior performance.

The Right Platform for the Right Service Level

Service providers need to address different business market segments, the challenge being to balance diverse technical requirements and service prices. Often the preferred solution is to select CPEs from different vendors. However, the result may be increased costs to the service provider due to heavy product qualification and IT integration cycles. This, unfortunately, undermines the ultimate goal of gaining service agility and saving costs. OneAccess product design leverages common hardware and software functions in a series of products. Service Providers thus save time during product evaluation, and the common, complete management stack enables quick adaptation of IT tools whenever a change in service offering is required. The modular design enables fine-tuning the service offering for price-sensitive markets. The OneAccess range can be customised with an array of WAN interface combinations (Fibre, VDSL, LTE) and optional WiFi on the LAN side. Its feature set can be used from a basic managed Internet service to full enterprise needs.

SD-WAN Ready

Ekinops SD-WAN extends from the OneOS6 features and enhances them to deliver a feature-rich and full fledge SD-WAN solution. Additional functionalities embedded in the SD-WAN Xpress license enable Service Providers to transform their existing business VPN, delivering the highest value from the same infrastructure. SD-WAN Xpress is a perfect fit for SMBs and companies in various verticals, such as Retail, which, above all, look for a cost-effective solution enabling them to quickly adopt digital transformation and leverage SaaS services (O365, SalesForce, etc.).

Key Take Aways

Up to 1Gbps
Service Performance

Small and branch office data routers are available for services with a bidirectional service performance from 100Mbps up to 1Gbps. That makes them suitable for extensive use of cloud services while keeping a consistent user experience for real-time and mission-critical applications.

Fixed and Wireless WAN
in a single box

Fibre, DSL & wireless LTE access can be combined in a single box for redundant network access. VDSL and SHDSL interfaces with advanced performance and market-leading interoperability. VDSL up to profile 35b and dual-pair VDSL are also available. 5G and LTE up to cat18 can be used as a backup link or for fixed wireless access.

Flexible deployment
with OneOS6

Ekinops' standard operating system for physical and virtual services. Supports legacy management like CLI, TR-069, SNMP, and orchestrators with NetConf. Service Providers can deploy OneOS6 products with their existing management tools and seamlessly transition to next-generation OSS systems when ready.

Meet the family

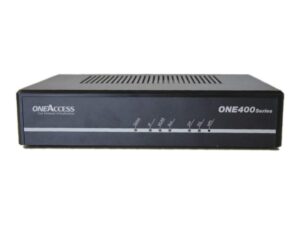

OneAccess - One421

The ONE421 is designed to deliver VDSL and Fibre data services up to 100Mbps for the SME market with optional LTE for service continuity.
The ONE421 is a powerful router with a compact form factor. Based on the latest VDSL chipset technology, it assures market-leading interoperability and superior performance.
The ONE421 guarantees 100Mbps bi-directional routing performance (IMIX409) with real-world services. The WiFi interface includes two radio chipsets to manage WiFi concurrently in the 2.4 and 5GHz frequency bands. The number of antennas significantly increases WiFi reach and throughput: 802.11b/g/n is supported by a 3×3 antenna system, while the 802.11a/ac relies on 4×4 MIMO. The MU-MIMO brings an additional improvement in throughput by multiplexing data streams of multiple users when they are spatially separated. The Ethernet switch ensures non-blocking switching between LAN and WiFi users at Gigabit speed.

Ekinops - One421 Small Business Router
Ekinops - One421 Small Business Router
Ekinops - One500 Series Small Business Router
Ekinops - One500 Series Small Business Router

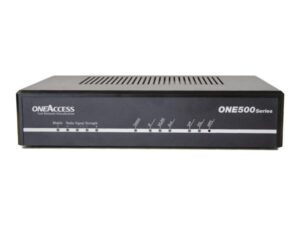

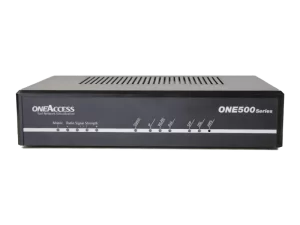

OneAccess - One500 Series

The ONE500 Series answers the needs of evolving broadband access, with higher accessibility to fibre connectivity and high-speed VDSL enabled thanks to vector and bonding. The packet forwarding engine delivers premium performance with vectoring and bonding or bonded SHDSL with hybrid access like fibre offload over VDSL or LTE. The ONE500 Series enables the branch office to be ultra-connected: It connects the WAN at high speed and maximises WAN availability and throughput thanks to intelligent algorithms that select the optimal WAN path.
  • One521 – speeds up to 250Mbps
  • One531 – speeds up to 350Mbps

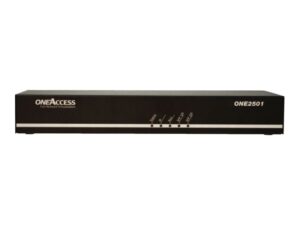

OneAccess - One2501

The ONE2501 answers the needs of evolving broadband access with an increased throughput to fibre connectivity. The packet forwarding engine delivers up to 1Gbps bidirectional throughput with IMIX traffic and advanced services. The ONE2501 supports multiple fibre links and failover to LTE. The ONE2501 enables the branch office to be ultra-connected: It connects the WAN at high speed and maximises WAN availability and throughput thanks to intelligent algorithms that select on an application level the optimal WAN path. Up to 8 Gigabit Ethernet ports are available on the LAN side with optional Power over Ethernet to connect IP cameras or IP phones. Dual concurrent WiFi 11ac/a/b/g/n completes the LAN connectivity.
Ekinops - One2501 Small Business Router
Ekinops - One2501 Small Business Router

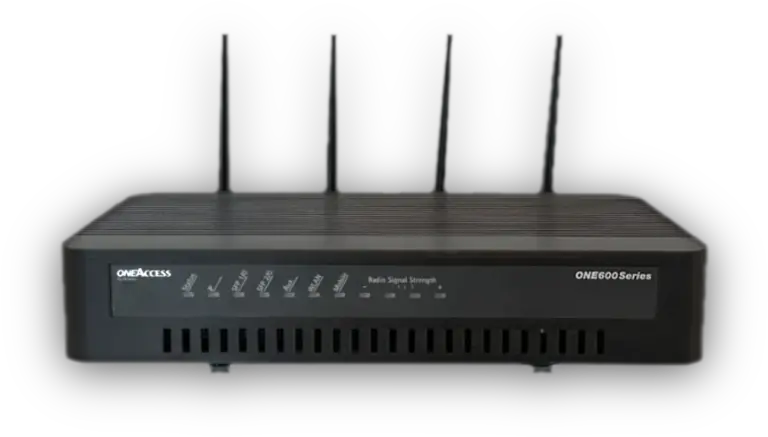

OneAccess - One641

The ONE641 brings powerful 10Gb fibre access with Wi-Fi 6 to Branch Offices for up to 50 users ready for Edge Computing in a compact eco-designed box.

2 Gbps (up to 3.4 Gbps) bidirectional routing and 4 Gbps (up to 11.7 Gbps) aggregated IPv4 routing performance with 10Gbps best effort performance.

Powerful Wi-Fi 6, optional fully fledged dual concurrent 2.4GHz 2×2/5GHz 4×4.

Optional 5G/LTE backup for redundancy.

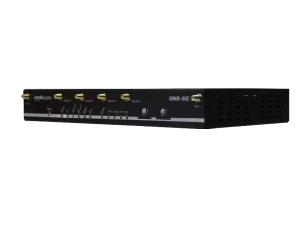

OneAccess - One5G

The OneAccess 5G router, ONE-5G, answers the needs of evolving broadband access with an increased throughput delivered over the new 5G radio access network. Its packet forwarding engine delivers Gigabit bidirectional throughput with advanced services.
The ONE-5G is designed for Fixed Wireless Access (5G primary link) but can also be used for backup and Hybrid WAN service.
Up to 4 Gigabit Ethernet ports and an embedded dual concurrent Wi-Fi 11ac/a/b/g/n access point are available on the LAN side.
The ONE-5G router operates in the Sub-6Ghz frequency band. It can be deployed in Non-Stand Alone (NSA) or Stand Alone (SA) mode.
As the ONE-5G is also 4G compatible same products can also be used where 5G coverage is not yet there.

Ekinops - One5G Small Business Router
Ekinops - One5G Small Business Router
