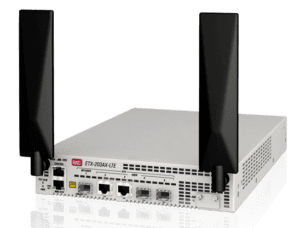

ETX-203AX-T
Carrier Ethernet Device with LTE/Broadband Connectivity
ETX-203AX-T, an important addition to the RAD ETX-2 family of Ethernet demarcation devices, enables service providers to rapidly roll out Ethernet services using LTE or Broadband access. It enables extending Ethernet services over LTE in locations where fixed-line access is not available. Alternatively, LTE or Broadband access may be used as backup for an optical primary connection, increasing service reliability.
CARRIER GRADE SERVICES
ETX-203AX-T incorporates a complete set of CE 2.0-certified Ethernet service tools. It supports advanced scheduling, WRED per CoS, shaping per EVC and port, with flexible classification rules and access lists.
ETX-203AX-T delivers the following MEF services: E-Line (EVL, EVPL), E-LAN (EPLAN, EVPLAN), E-Tree (EP-TREE, EVP-TREE), and E-Access services.
ETX-203AX-T NID/CPE with tunnelling support enables service providers to rapidly roll out Ethernet services using LTE or Broadband (BB) access.
The main features of ETX-203AX-T include the following:
- Secure tunnelling of Ethernet services (EVCs) over the public Internet, using L2oGRE or L2TPv3 with optional IPsec encapsulation
- Optional Integrated LTE modem with global coverage and automatic fallback from 4G to 3G
- PPPoE protocol for DSL BB modem connection
- MEF CE2.0 compliant service attributes
- Data and management protection with automatic switchover and switchback
- Advanced management capabilities, fully compatible with the ETX-2 family
- Front access standard SIM card-protected slot
- Integrated wide-range AC/DC power supply
- Compact half 19” 1RU form factor, metal enclosure, fanless
Use Cases
Get in touch to talk about your project
We can help!
Our expert team are waiting for your call to assist!
Your Project
Whether you are at the beginning or ready to specify your project requirements we are ready to take your call.
The way forward
Every project is different, our expert team adapts and works with you towards your solution.
- +44 (0)1322 552 000
Search ETX-203AX-T Products
Filters Sort results
Reset Apply
Product | SKU | Category | Description |
|---|---|---|---|
Switch Switch | Carrier Ethernet demarcation device, 100-240 VAC, 1 Gbps per port… | ||
Switch Switch | Carrier Ethernet demarcation device, 100-240 VAC, 1 Gbps per port… | ||
Switch Switch | integrated LTE, 1 Gbps per port, 30 shaped EVCs, 2… | ||
Switch Switch | integrated LTE, 1 Gbps per port, 30 shaped EVCs, 2… | ||
Switch Switch | Carrier Ethernet Demarcation with fixed and modular uplink, 1 SFP… | ||
Switch Switch | Carrier Ethernet Demarcation , 1 Gbps per port, 2 SFP… | ||
Switch Switch | Carrier Ethernet Demarcation , 1 Gbps per port, 2 SFP… | ||
Switch Switch | Carrier Ethernet Demarcation , extended temperature, NEBS compliant, 1 Gbps… |
