Carrier-grade, MEF-certified access platforms for delivery of Carrier Ethernet Services
Carrier Ethernet Services up to 10Gbps
The OneAccess EADs (Ethernet Access Devices) with OneOS6 software provide CSPs with a demarcation device for high-speed Ethernet services for enterprise customers and be deployed in wholesale and retail scenarios. Regarding services and QoS, the OneAccess Ethernet Access Devices comply with all MEF-defined services (E-Line, E-LAN, E-tree, E-Access and E-Transit). Scalable SLA monitoring functions provide the measuring tools to support managed services. The implementation of various service activation tests reduces operational costs while providing high-speed Ethernet services. Supporting CLI and Netconf/ YANG as management interfaces, OneAccess EADs provides a future-proof solution for managing Ethernet services in a next-generation orchestrated environment while providing familiar CLI-based device operation.
Metro Ethernet Services
The OneAccess Ethernet Access Devices support the delivery of Ethernet services like E-LINE, E-LAN, E-Tree, E-ACCESS and E-Transit and are fully compliant with MEF 3.0.
Service Activation Testing
The OneAccess EADs support SAT testing based on RFC2544 or with the more advanced Y.1564 and implement both a traffic generator and traffic reflector. After completing the test, the system delivers a birth certificate in plain text for local storage or archiving purposes. SAT testing allows operators to provide an intrusive end-to-end test to verify that the offered service complies with the agreed SLA agreements. Performing these tests without going on-site enables operators to install, turn on and modify services at a minimal cost.
Key Take Aways
for business services over fiber. Multiple backup options, over 4G or 5G, to help ensure business continuity.
with the help of multiple built-in tools and features. Support for Zero Touch Provisioning (ZTP), built-in Service Activation Testing (SAT) and End-to-End Service testing.
for SLA-based Ethernet services and proactive monitoring of end-to end services. Verify performance parameters with Y.1731 automated measurements.
Meet the family

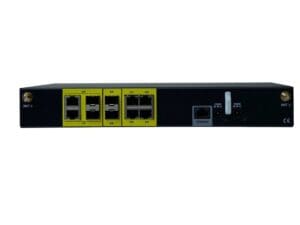

OneAccess 1647
The basic model of the 1647 EAD provides two 1Gbps Combo ports (UTP or SFP) for WAN connectivity and two SFP ports for customer fibre connectivity in addition to four 1Gbps UTP ports.
This device is positioned to provide cost-effective 1G Ethernet demarcation functions for wholesale and retail Ethernet services and comes as a desktop version with redundant external power supplies.
Additional variants exist on the base model:
- Version with 4G CAT12 radio interface as a main or backup link
- Version with 5G radio interface as a main or backup link
This is to be able to provide Ethernet services over 4G/5G networks in several deployment scenarios. The most important scenario is to use the 4/5G radio to provide temporary wireless connections awaiting the installation of permanent fiber connections. Once the permanent connection is up and running, the same demarcation device can be used to provide backup in case of link failure. Another scenario is to use the 4/5G access network as primary link to deliver Ethernet services in remote places where a fixed fiber network infrastructure is not available or practical to install.
OneAccess 1651
The 1651 10G Ethernet Access Device with OneOS6 software provides CSPs with a service delivery platform for high-speed Ethernet services for enterprise customers. It can be deployed in wholesale and retail scenarios.
Available in two variants:
Demarcation: provides 2 SFP+ ports for WAN connectivity and 2 SFP+ ports for client connectivity. Two additional GigE Combo ports are provided for additional Ethernet connections. It provides cost-effective 10G demarcation for both wholesale and retail Ethernet service providers and comes as a desktop version with redundant external power supplies.
Aggregation: provides 2 SFP+ ports for WAN connectivity, 2 SFP+ ports for subscriber connectivity and up to 12 customer-facing GigE client ports (4x UTP, 4x SFP, 4x Combo). Positioned to aggregate multiple GigE connections into a 10G uplink and comes as a rackmount 1U device with built-in redundant, hot-swappable and load-sharing power supplies.
