Ekinops ONE421

The Right Platform for the Right Service Level

Service providers need to address different business market segments, the challenge being to balance diverse technical requirements and service price. Often the preferred solution is to select CPEs from different vendors. However the end result may end up being an increase in costs to the service provider, due to heavy product qualification and IT integration cycles. This unfortunately undermines the ultimate goal of gaining service agility and saving costs.

OneAccess product design leverages common hardware and software functions in series of products. Service Providers thus save time during product evaluation and the common, complete management stack enables quick adaptation of IT tools, whenever a change in service offering is required.
The modular design enables to fine-tune the service offering for price sensitive markets. The ONE421 can be customized with various WAN interface combinations (Fibre, VDSL and LTE) and optional WIFI.

SD-WAN Ready

Ekinops SD-WAN extends from the OneOS6 features and enhances them to deliver a feature-rich and full fledge SD-WAN solution. Additional functionalities embedded in the 2 variants of SD-WAN license (Xpress and Prime) enable Service Providers to transform their existing business VPN, delivering highest value from the same infrastructure. SD-WAN Xpress is a perfect fit for SMBs and companies in various verticals such as Retail, which, above all, look for a cost effective solution enabling them to quickly adopt digital transformation and leverage SaaS services (O365, SalesForce, etc.). SD-WAN Prime is tailor made for larger organizations where business applications are mission-critical and require real time optimization to grant the expected Quality of Experience.

As part of a complete product family enabling up to 10Gbps business data services, the ONE421 is designed to deliver VDSL and Fiber data services up to 100Mbps for the SME market with optional LTE for service continuity.

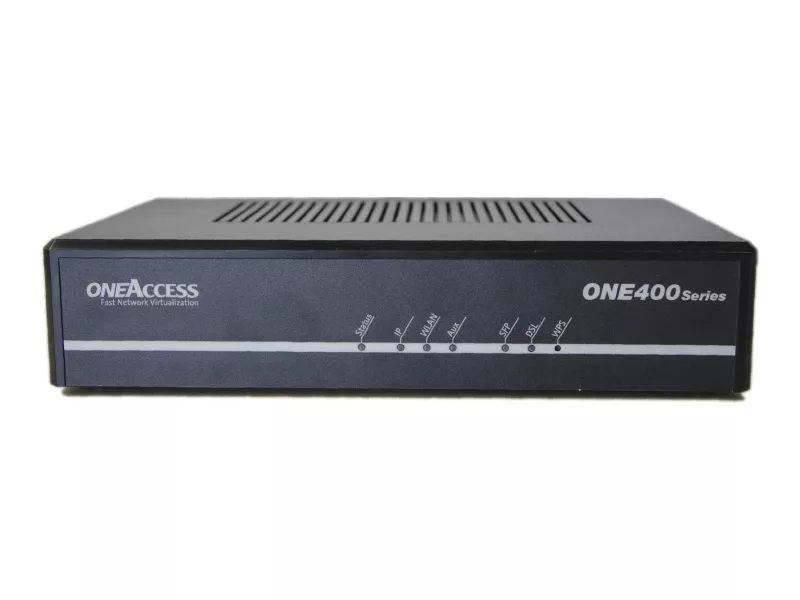

The ONE421 is a powerful router based on a compact form factor. Based on the latest VDSL chipset technology, the ONE421 assures market-leading interoperability and superior performance.

The ONE421 guarantees 100Mbps bi-directional routing performance (IMIX409) with real-world services. The WiFi interface includes two radio chipsets to manage concurrently WiFi in the 2.4 and 5GHz frequency bands. WiFi reach and throughput is significantly increased by the number of antennas: 802.11b/g/n is supported by a 3×3 antenna system, while the 802.11a/ac relies on 4×4 MIMO. The MU-MIMO brings an additional improvement in throughput by multiplexing data streams of multiple users when they are spatially separated. The Ethernet switch ensures non-blocking switching at Gigabit speed between LAN and WiFi users.
